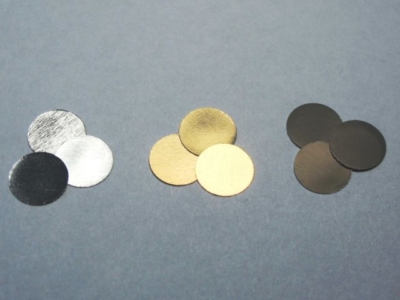

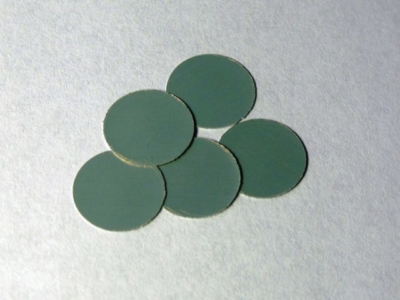

nanoporous anodic alumina films on Al foil

AAO Films on Aluminum

$0.00 – $500.00

Anodic Aluminum Oxide (AAO) films on Al are a convenient low-cost alternative to free-standing AAO wafers or membranes for many applications, such as templated growth of uniform arrays of nanowires, nanotubes and nanodots.  Other uses of AAO films on Al include chemical and biological sensing, energy conversion, SERS substrates, photonic and metamaterials, reference substrates for Atomic Layer Deposition (ALD) and many more.

Product features:

  • • Broad range of pore diameters from 2.5 nm to 300 nm.
  • • Thicknesses from 0.05 to 50 micrometers (minimal thickness is 3x pore diameter)
  • • AAO is grown on 0.1 mm thick Al foil; thicker substrates are available as custom product

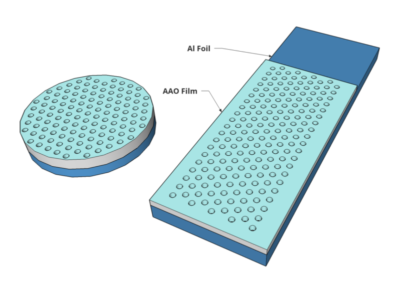

  • • Inherently strong adhesion of AAO to Al substrate
  • • Pores are separated from Al by a thin (10’s to 100’s nm) layer of dense alumina
  • • AAO grown on one or both sides of Al foil
  • • Barrier layer could be tailored to facilitate electrodeposition (custom option, please inquire)
  • • Contact tab could be provided as an option for custom orders

Contact us if you need a combination of AAO parameters not available in standard products offered on this page.

Clear
SKU: AAO|Al-SIZE-DP-H-1 Categories: AAO Nanotemplates, AAO Products, Nanofabrication Toolbox Tags: AAO, Nanotemplates
  • Description
  • Additional information

Description

Data sheet with detailed specifications for standard products is available upon request.

PARAMETER AVAILABLE RANGE* STANDARD SPECIFICATIONS (STOCK PRODUCTS)
Pore Diameter, nm 2.5 – 500 2.5, 5, 10, 20, 40, 80, 120, 160, 200, 250, 300 (±10% + 2)
Size, mm (in) 5 – 200 (1/8″ – 8″) 10 to 100 (3/8″ to 4″) per side
Shape any square or rectangular
AAO Thickness (Pore Length), µm 0.1 – 300 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50 (±10%)
(minimal thickness is 2 to 5 times the pore diameter)
Pore Density, cm-2 1012 – 107 depends on pore diameter
Porosity, % 1 – 60 10 – 25, depends on pore diameter

* Custom specifications within these ranges are available upon request, contact us with your requirements.

** Lead time for standard specifications is 2 to 10 days and 2-6 weeks for custom orders.

*** Volume discounts are available for orders over $750.  Contact us to request a formal quotation.

Additional information

Pore Diameter

2.5 nm, 5 nm, 10 nm, 20 nm, 40 nm, 80 nm, 120 nm, 160 nm, 200 nm, 250 nm, 300 nm

AAO|Al Size

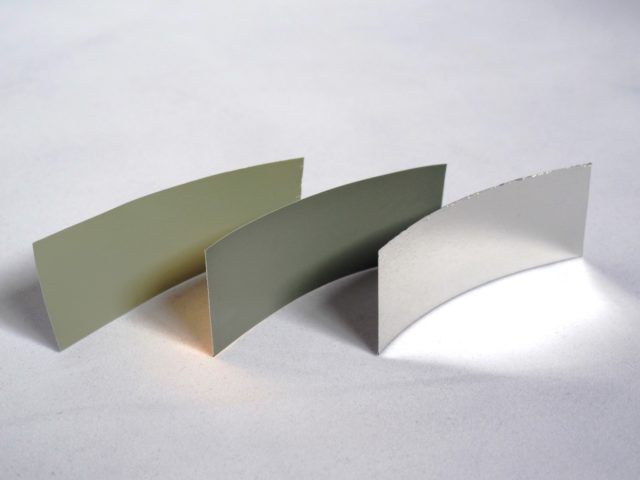

10 mm x 10 mm, 25 mm x 25 mm, 25 mm x 75 mm, 75 mm x 75 mm, 100 mm x 100 mm

AAO|Al Thickness

0.1 µm (for pore diameters ≤40nm), 0.2 µm (for pore diameters ≤80 nm), 0.5 µm, 1 µm, 2 µm, 5 µm, 10 µm (for pore diameters ≥5 nm), 20 µm (for pore diameters ≥10 nm), 50 µm (for pore diameters 10 to 300 nm)

One- or Two-Sided

AAO on two sides of Al (custom option, please inquire), AAO on one side of Al
